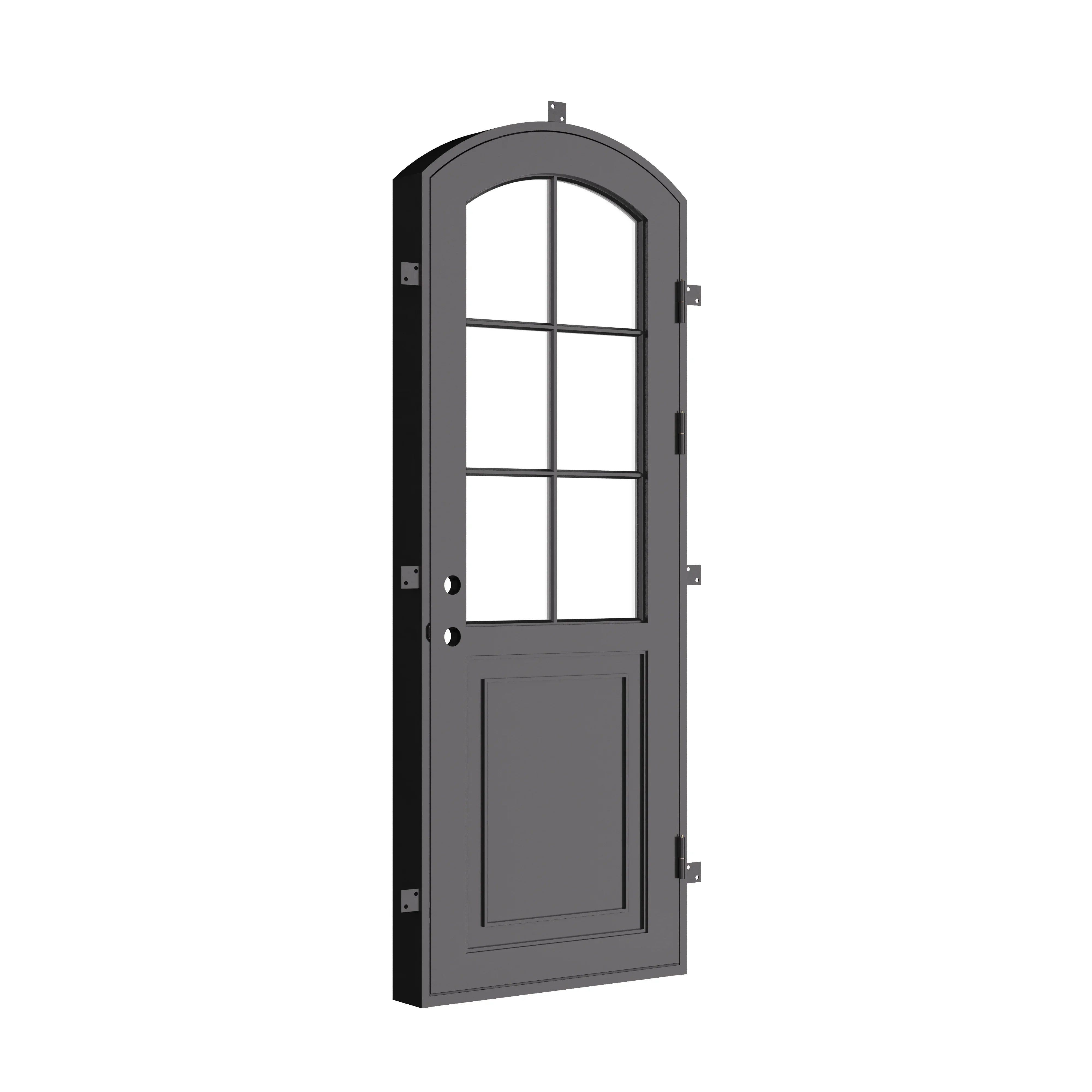

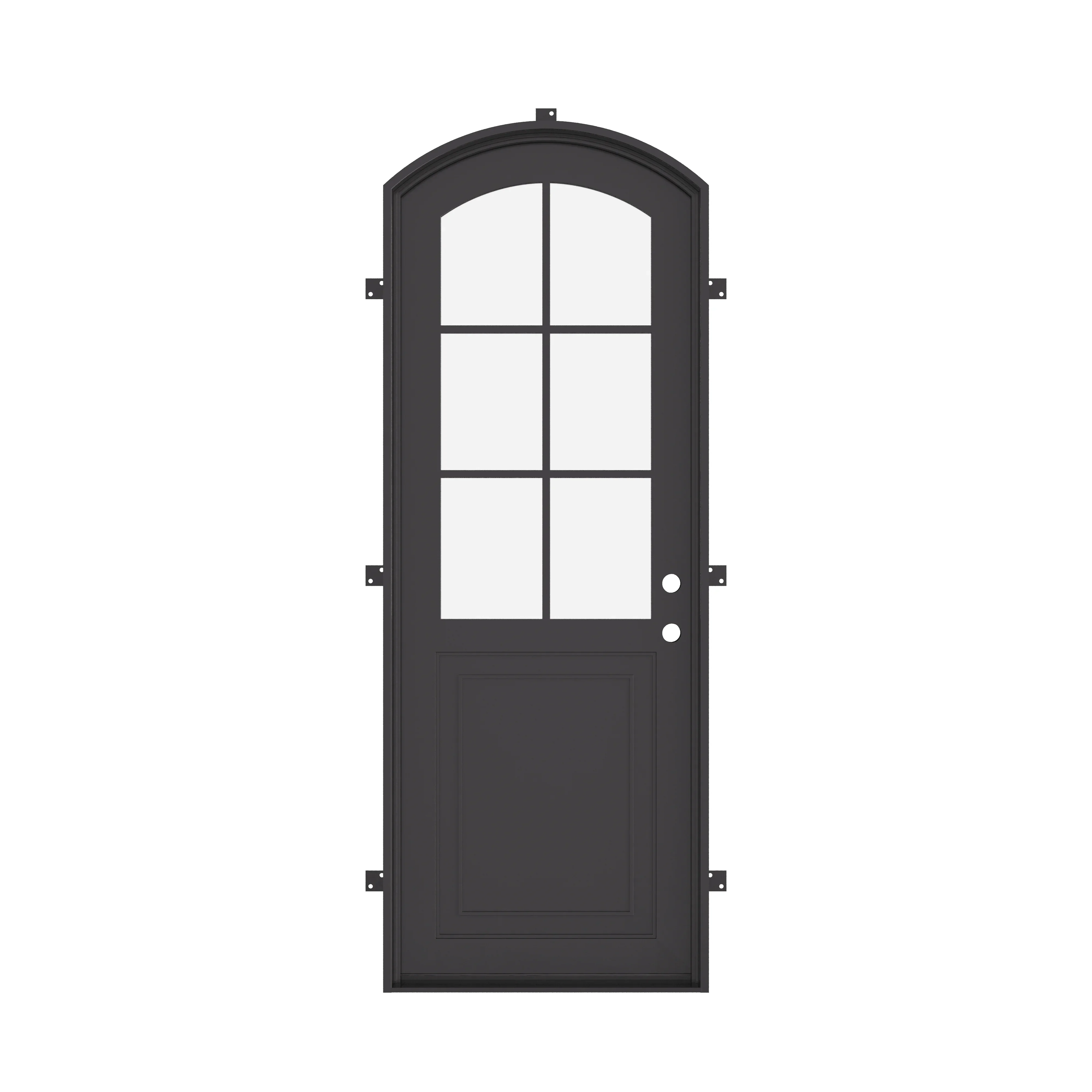

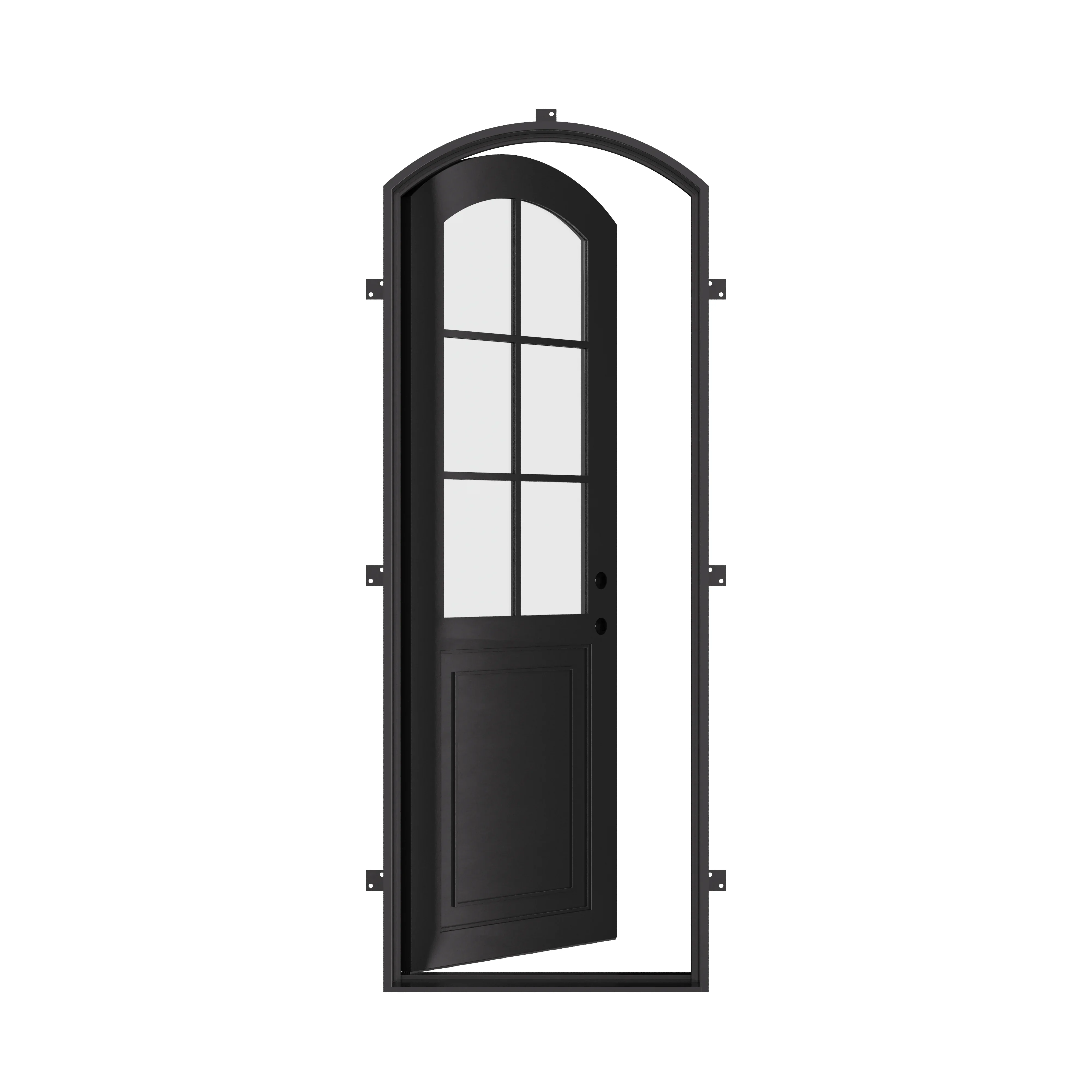

Air Getty with Thermal Break - Single Arch

The Getty is fabricated with 12-gauge material exceeding industry standards. The 2" doors are complete with a steel threshold, bullet hinges with grease fittings welded on the frame, and pre-drilled tabs welded on the jamb for easy installation. To provide our customers with an energy-efficient product, our 5/8" tempered dual pane operable glass designs feature dual sealants to reduce both thermal and air leakage. Additionally, each frame features Polyurethane dual foam weather stripping, aiding in the reduction of heat and cold transfer. To further stop the infiltration of sound, light, drafts, insects, and moisture, the bottom of the door is sealed with a gap-proof seal.

COATING THICKNESS

• Spray Primer Thickness - Around 180 microns
• Paint Color Thickness - Around 30 microns
• Clear Coat Thickness - Around 30 microns

ALL THERMALLY BROKEN DOORS HAVE 3” NAILING FIN ALL AROUND

Lock in photograph is the Weslock Molten Bronze - Wilshire. Lock sold separately.

All 81" high come with 4 grid pattern.

All 96" high or greater come with 6 grid pattern.
